Thermopile Arrays and Imaging

In General

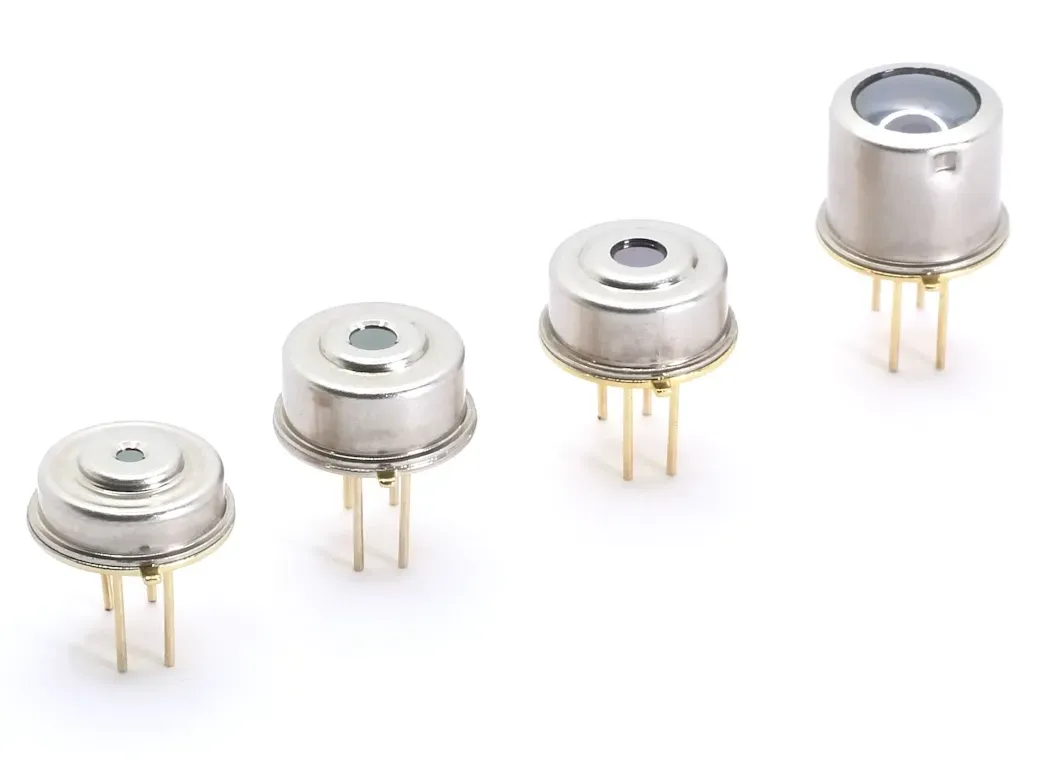

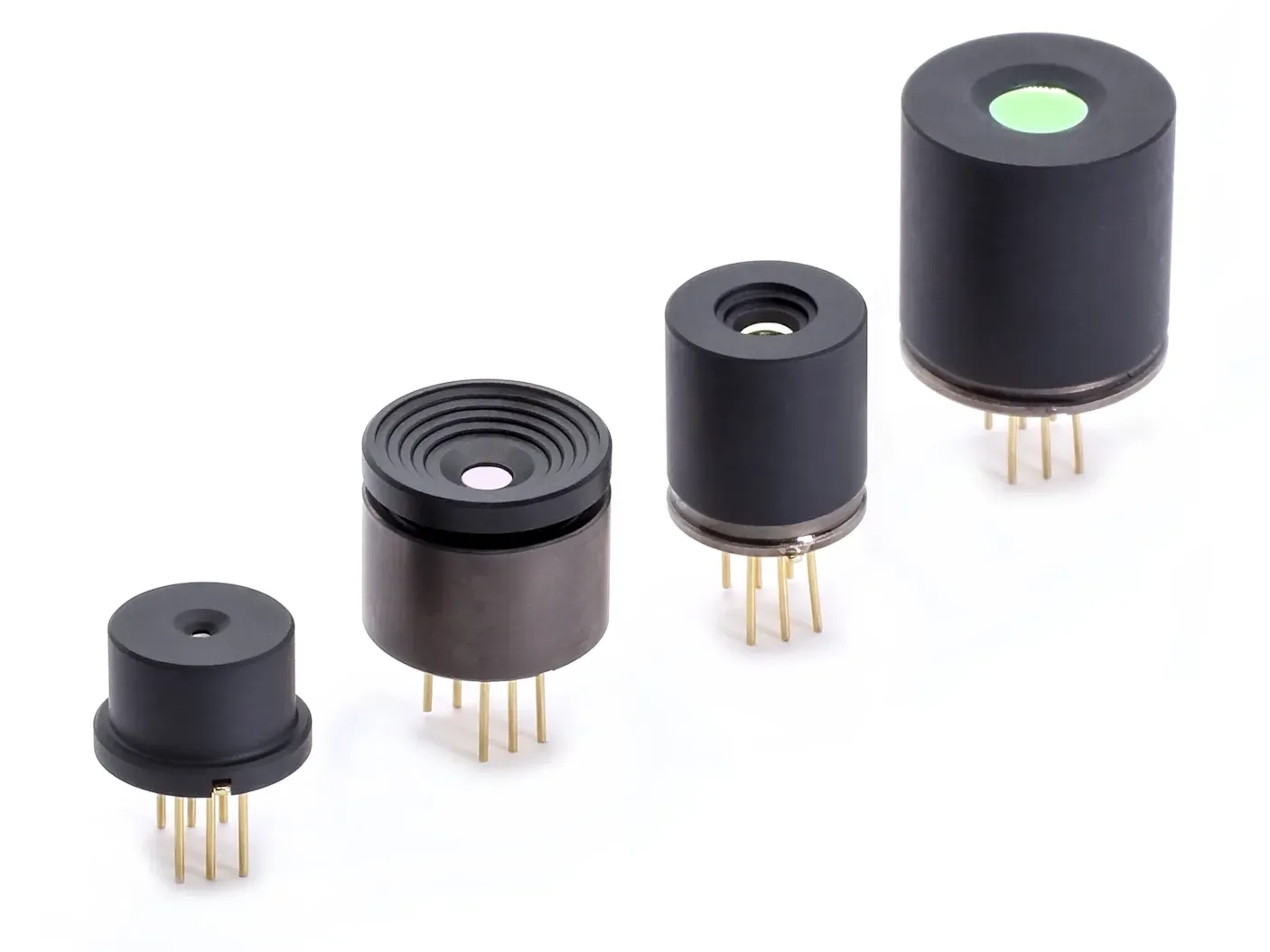

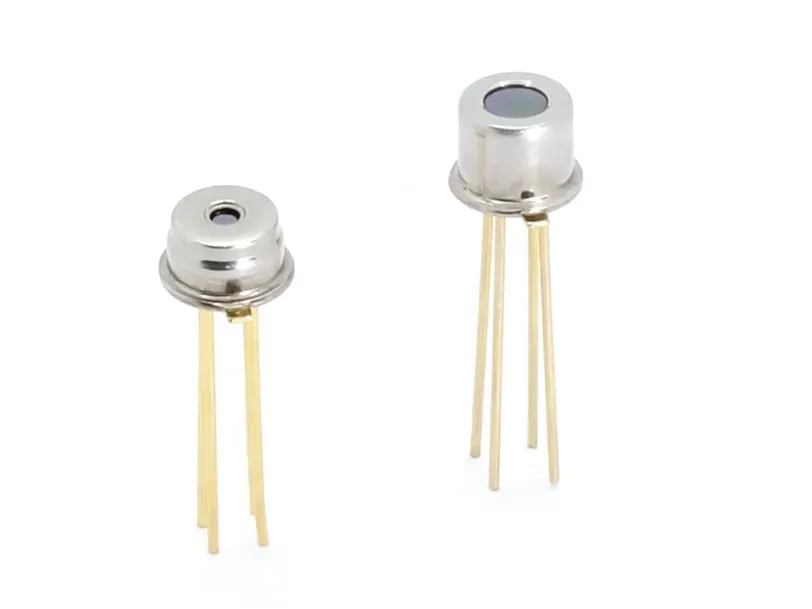

Heimann offers the worldwide first fully monolithic thermopile arrays in TO-8, TO-39 and TO-46 housing.
    ArrayFamily
  • 8x8d elements (digital)
  • 16x4d elements (digital)
  • 16x16d elements (digital)
  • 32x31 elements (analog)
  • 32x32d elements (digital)
  • 64x62 elements (analog)
  • 80x64d elements (digital)



Promotion

Starter Set HTPA 32x32d L5.0/0.85-F7.7e HiA Thermopile Array

or

Starter Set HTPA 32x32d L2.1/0.8 F5.0 HiA Thermopile Array

for 255

(ex. works, excl. VAT)

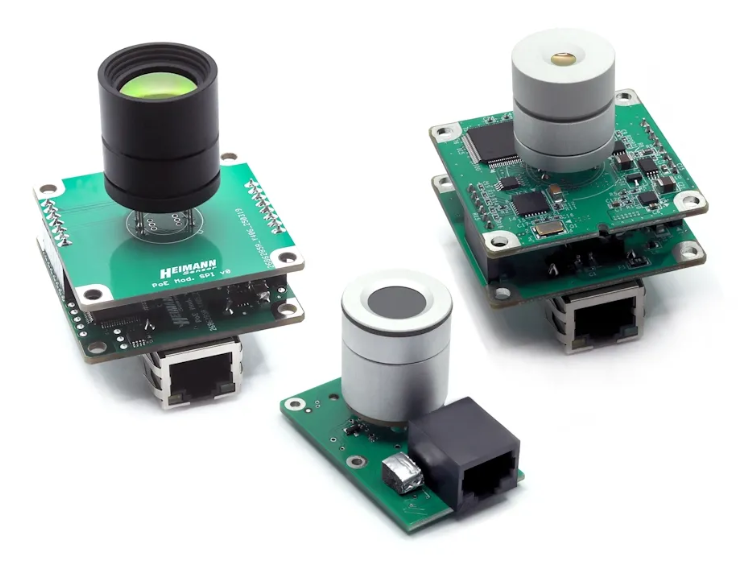

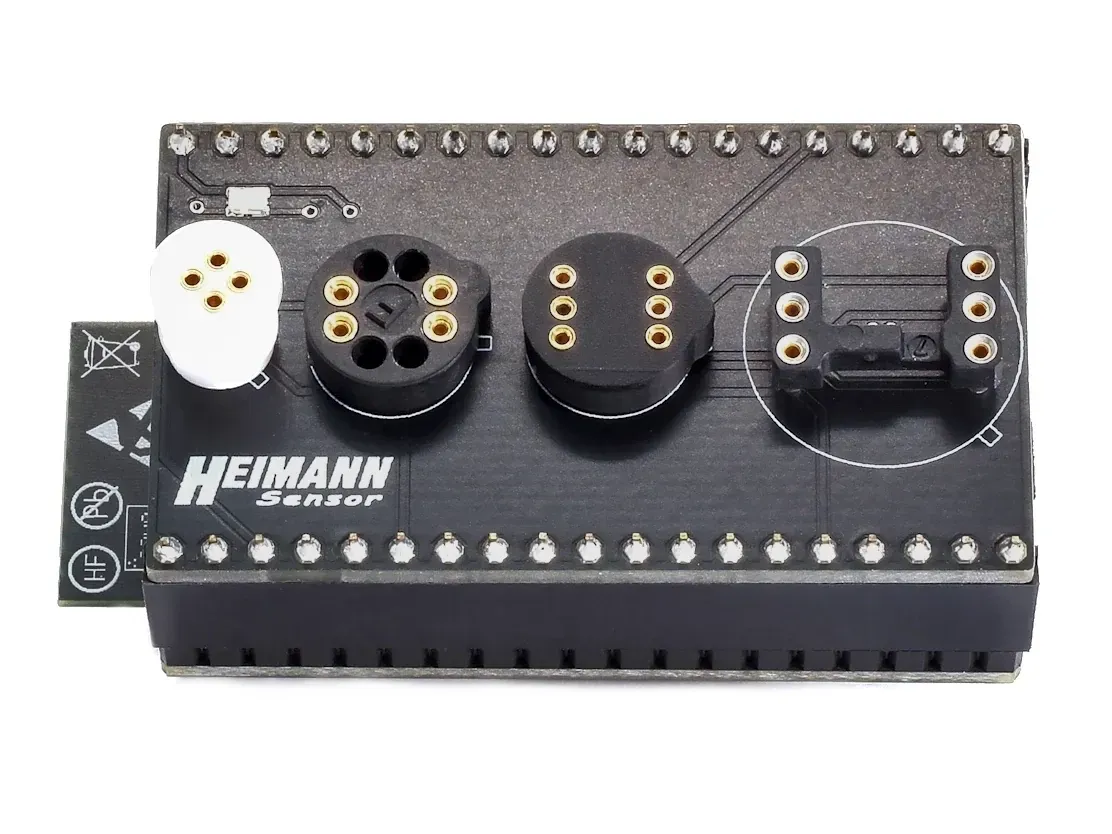

Application Set This Application Set includes an IR-Camera with integrated valueable Germanium-Optics and an Ethernet interface. A windows-based visualisation program gives all possibilities to observe the temperature data stream for up to four cameras.

Includes:
  • IR-Camera (32x32d, digital interface)
  • Power Supply
  • Tripot
  • Cables
  • Software package


Starter Set HTPA 80x64d L10/0.7 HiA Thermopile Array

for 290

(ex. works, excl. VAT)


Application Set This Application Set includes an IR-Camera with integrated valueable Germanium-Optics and an Ethernet interface. A windows-based visualisation program gives all possibilities to observe the temperature data stream for up to four cameras.

Includes:
  • IR-Camera (80x64d, digital interface)
  • Power Supply
  • Tripot
  • Cables
  • Software package

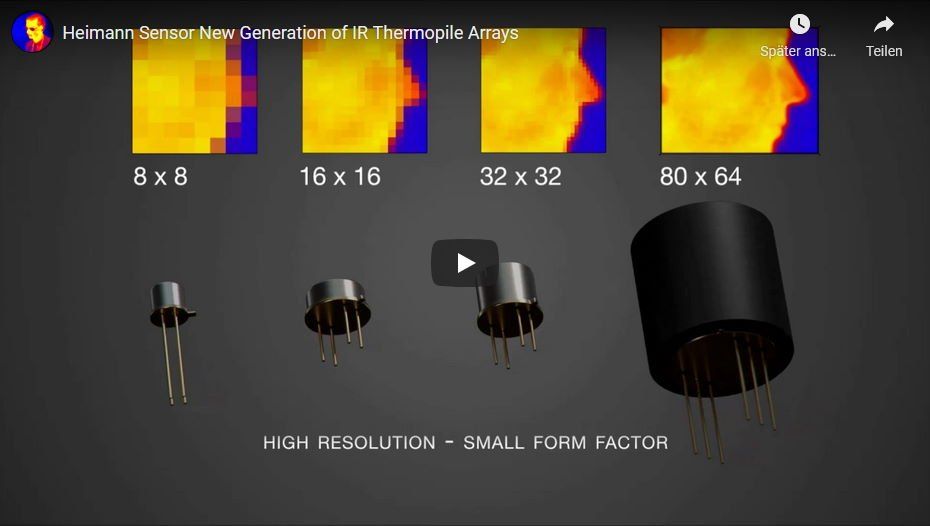

Thermal Imaging Example


This video, taken with our array-sensor (32x31), shows a person drying his hair and fidgeting with the dryer. White represents the highest temperature in the scene. Details are lost due to compression.
