80x64 Array
80x64 Thermopile Infrared Array

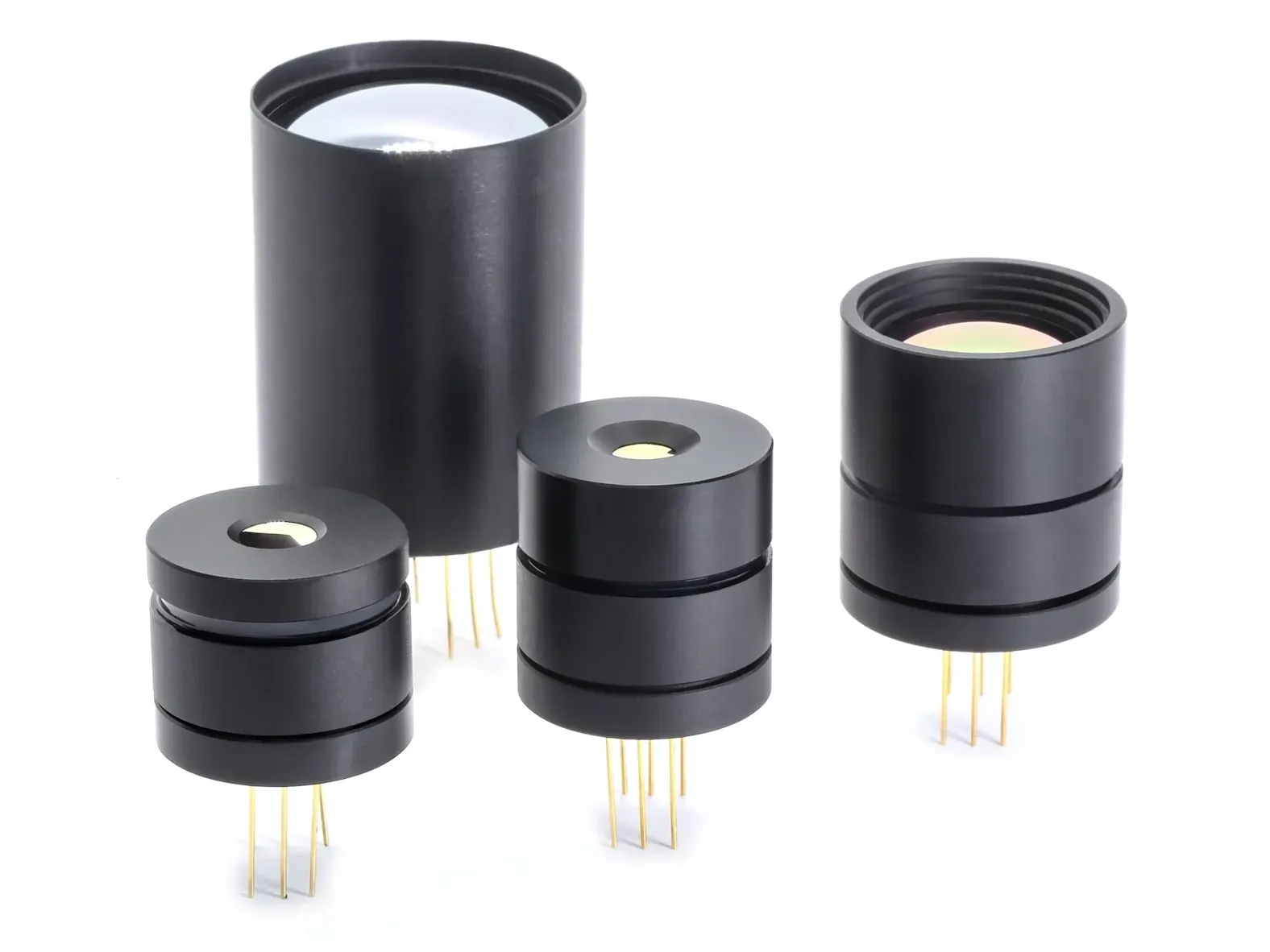

The HTPA80x64d is a small size, high performance, low cost thermopile infrared array for thermal imaging inside a TO-8 housing.
Due to the digital SPI interface, only six pins are needed for operation. It has a 16-bit ADC and built-in EEPROM stores all calibration data. The framerate can be set individually and depends on the sensor clock and ADC resolution.
For high 16-bit resolution, framerates of up to 20 Hz are possible, while lower ADC resolutions allow framerates of up to 30 Hz and more. Different available optical lenses, integrated with the array in TO-8 housing, provide fields of view (FOV) from 12x9 degree up to 120x90 degree.
Features and Benefits
- 80x64 thermopile pixels
- True shutterless operation
- 12x9° to 120x90° FOV
- High framerates of 9 Hz to 60 Hz
- 16-bit ADC resolution
- High object temperature range
Specifications
| Value | Tolerance | Unit | |
|---|---|---|---|
| Supply voltage (DC) | 3.3 | +0.3/-0.0 | V |
| Current consumption | 25 | ± 5 | mA |
| Clock frequency (Sensor) | 5 | ± 3 | MHz |
| Ambient temperature range | -20 to 85 | °C | |
| Object temperature range | -20 to >1000 | °C | |
| Framerate (full frame) | 2 to 60 | Hz | |
| Framerate (quarter frame) | 8 to 240 | Hz | |
| NETD (best optics) | 230 or 70* | mK@1Hz |
* NETD valid for UHi version
Example Pictures and Videos
