8x8 Thermopile
Infrared Array

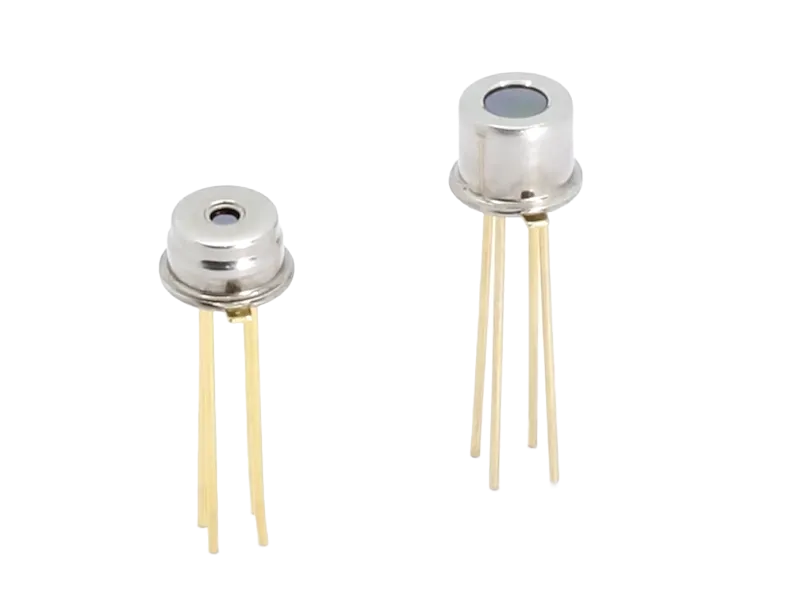

The HTPA8x8d is the world's smallest thermopile infrared array sensor with
a resolution of 8x8 pixels inside a TO-46 metal housing with IR lens as window.
16-Bit
ADC resolution
i²C interface
Integrated optical lenses available
Built-in EEPROM
High frame rates of 89 Hz and more
Ideal for remote temperature measurements, gesture and movement detection
Specifications
| Value | Tolerance | Unit | |
|---|---|---|---|
| Supply voltage (DC) | 3.3 | +0.3/-0.0 | V |
| Current consumption | 2 | + 0.5/0.4 | mA |
| Clock frequency (Sensor) | 5 | ± 3 | MHz |
| Ambient temperature range | -20 to 85 | °C | |
| Maximal object temperature | see our Assortment Table | °C | |
| Framerate | 7 to 160 | Hz | |
| NETD | 115 | mK@1Hz | |
| Field of view | 23 or 47 | ° |
